Business Area

5G/LTE Devices

#HUCOM Wireless #5G/LTE #Module #Modem #Router #5G/LTE On Device AI

5G/LTE Devices

DONGWOO FINE-CHEM introduces a range of products including Modules, Modems, and Wi-Fi routers equipped with cutting-edge 5G technology.
By producing high-quality products that boast outstanding performance and reliability, we are able to develop and supply customized solutions that tailored to our customers' requirements.

Development of Innovative Products
Leading the Latest 5G Technology Trends

Main Business Area
(HUCOM Wireless)

5G Img

5G/LTE Device

5G/LTE Module, Modem, Router

Qualcomm & MediaTek Solutions

Leading the Market with

Various of 5G Line-Up &

Application of Latest Technology

On Device AI

Launching 5G/LTE Edge AI Device

Development of Edge AI Models for
Various Applications

A Versatile AI Device Adaptable to
Diverse Environments through Simple AI
Model Swapping

Strengths of HUCOM Wireless

Comprehensive
Product Lineup

• Offering a range of modules, modems, and Wi-Fi routers equipped with cutting-edge 5G technology • Capable of developing / supplying customized solutions tailored to customer requirements

Incomparable Technology
& Innovative Solutions

• Capability to develop innovative products that lead the latest 5G technology trends • High-quality products with exceptional performance and reliability

Established History
and Proven Experience

• Years of accumulated expertise in wireless communication technology and product manufacturing • Extensive know-how built through collaboration with a wide range of clients

Customer-centric Service
and Support

• Provide optimized solutions through close collaboration with customers • Provide comprehensive technical support to ensure customer’s success

Continuous Innovation
for the Future

• Continuous investment in R&D of leading-edge technologies • Enhanced understanding & ability for rapidly changing technologies

Case Studies & Success Stories (HUCOM Wireless)

• SK Telecom: Seoul C-ITS, Incheon Airport Smart CCTV, UAM Han River Network • NAVER: Smart Robot 5G Module • LG U+: Busan Smart Port RTK(Ultra-Precision GPS), KLPGA 28GHz Live Broadcast • NESIC(Japan): Private 5G Trial Deployment • Ministry of Science and ICT: 28GHz Subway Expansion, Public Wi-Fi Phase 2 • NIA: 5G 28GHz Router Supplier • SAMSUNG & Ericsson: Private 5G Field Application • Public Facilities in Korea: Gwangju Baseball Stadium, Changwon Basketball Arena, BEXCO(Busan)
Image 2
Image 2

Module

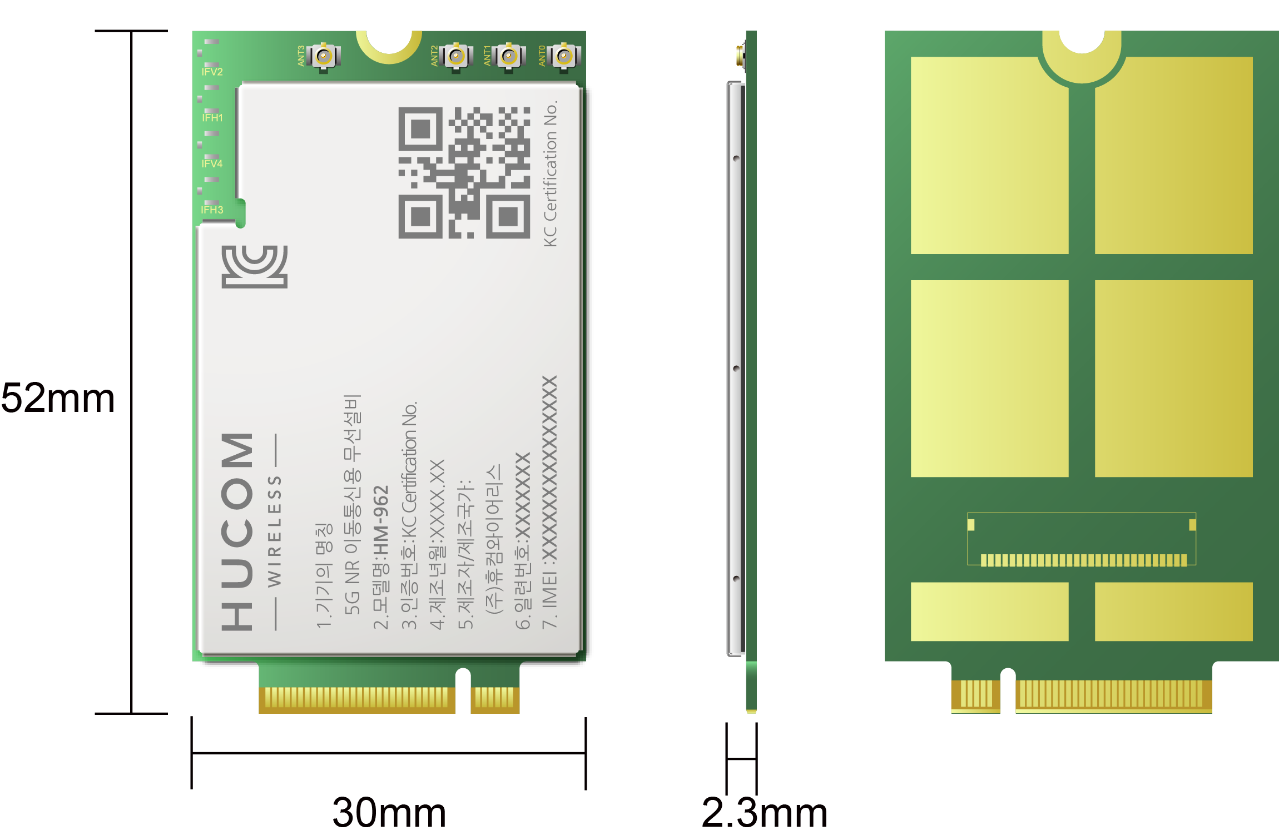

HM962
HM965
HM975
HM750

• Optimized for 5G Network Sub6 M2M Module

• 5G NSA & SA support for mobile carriers and Local 5G providers

• Data Sheet

• DATA SHEET

Specifications
Chipset Qualcomm SDX62
External Network Access LTE/5G NR SA & NSA
Air Standard 3GPP Release 16
Air interface 5G-FR1 : n78(NSA), n79(SA)
LTE : B1/B3/B5/B7/B8(Korea)
Memory RAM : 4Gb 16-bit LPDDR4X
ROM : 4Gb 8-bit NAND
Power supply Vbat : 3.3~4.2V
Typical : 3.8V
Power consumption Typical 5.3mA @ sleep mode
Transmit power LTE : <340mW
5G-Sub6 N78 <400mW, 5G Sub6 N79 <200mW
Data transmission throughput 4Gbps(DL)/500Mbps(UL) for NR SA
2Gbps(DL)/200Mbps(UL) for LTE
Antenna 4 antennas for 4G/5G-sub6
Interface USB 3.1 Gen2
PCIe 3.1
RGMII
S/W FOTA & DMS (Device Monitoring system)
DMZ
IP Pass Through
MAC, Port Forwarding, DHCP
Modulation system NR : DL 256QAM, UL 256QAM
LTE : DL 256QAM, UL 256QAM
Size 30 x 52 x 2.3(mm)
Weight about 15g
Mechanical Interface M.2
Temperature range Normal operation: -30°C to +70°C (3GPP compliant)
Extended: -40°C to +85°C
Storage: -40°C to +90°C
Certification KC, SKT, LGU+
